Getting earth tubing heating right before you build a greenhouse

clarkinks · August 20, 2026, 10:44am

I wanted to make the specs for these systems available as most everyone lacks the specs that are needed to build the system correctly. The systems are frequently used for large buildings like barndominiums like in the video below

Geothermal earth system for Kansas

8’ depth typically for pipe for your Geothermal loop depending on location

8-12” pipe only not smaller or larger

Pipe must be sloped 1 to 2% for drainage & uvc light

Smooth walled pipe is ideal not ribbed pipe (hpde pipe is best) NSF 61 pipe

1500 - 3000 sq ft building needs 100-150 pipe length at a minimum . Needs long length

Air intake must be screened , merv 8 filter housing, rain cap

Make sure to monitor results. Measure temps regularly.

“How Earth Tube Systems Work – Step by Step

Earth tubes use a simple yet powerful process to condition air before it enters your home. Here’s how it works:

Air Intake

Fresh outdoor air is pulled into the system through an above-ground intake vent, often fitted with a filter to keep out dust, pollen, and insects. This marks the beginning of the passive airflow process.

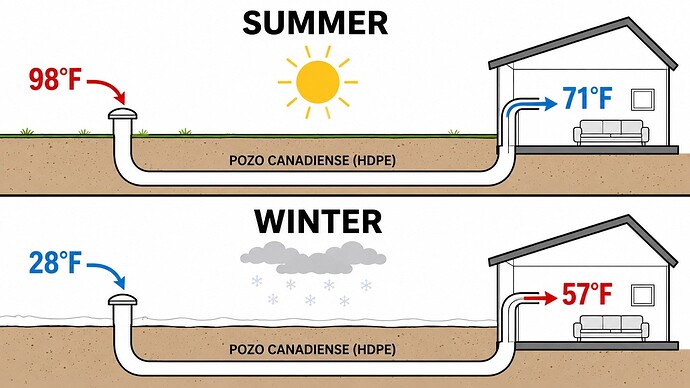

Subterranean Heat Exchange

The air moves through a network of pipes buried underground. As it travels:
- In summer, warm air is cooled by the surrounding soil.
- In winter, cold air is warmed by the earth’s natural heat.
This underground passage leverages the stable ground temperature to pre-condition the air.

Ventilation & Delivery

Once the air reaches the end of the pipe system, it enters the building’s interior via the ventilation system. Some systems use small fans, while others rely purely on passive airflow.
Optional exhaust vents may also be added to promote continuous circulation and maintain healthy indoor air quality.

Efficiency and Sustainability Benefits of Earth Tube Systems

One of the biggest advantages of earth tube systems is their ability to deliver eco-friendly heating and cooling with almost no energy input. Here’s how they stand out:

Energy Savings: By using the ground’s stable temperature, earth tubes dramatically reduce the need for mechanical HVAC systems. This can cut heating and cooling costs by 30–50%, depending on climate and system design.
Sustainability: Earth tubes are a form of passive geothermal ventilation, relying on renewable thermal energy from the ground. No fuel, no emissions—just natural airflow.
Improved Indoor Air Quality: Since fresh air is pulled from outside and filtered through underground pipes, the system helps regulate humidity and reduce indoor pollutants.
Minimal Maintenance: With no moving parts or compressors, earth tube systems are quiet, long-lasting, and cost-efficient to maintain over time.

These benefits make earth tubes a low-energy, sustainable cooling and heating solution for homeowners and eco-conscious builders alike.

Advanced Insights and Earth Tube Design Tips

Designing an efficient earth tube system involves more than just digging trenches and laying pipes. To get the most from this geothermal airflow system, several design factors must be considered:

Pipe Placement and Depth: For optimal performance, pipes should be buried 1.5 to 3 meters (5 to 10 feet) deep—where ground temperatures remain constant year-round.
Pipe Length and Layout: The length and shape of the system (looped, linear, or branched) should match your building’s size, climate zone, and desired airflow rate.
Material Selection: Use durable, thermally conductive materials such as HDPE or PVC, which resist corrosion and optimize heat exchange.
Soil and Climate Considerations: Local soil type, moisture levels, and seasonal temperature swings can all affect system performance. A basic thermal analysis of the soil is recommended.

For in-depth guides on earth tube planning and real-world case studies, visit:

As passive HVAC solutions grow in popularity, earth tubes continue to be adapted for off-grid homes, eco-conscious commercial buildings, and agricultural structures—offering a smart, low-cost path to sustainable indoor climate control.

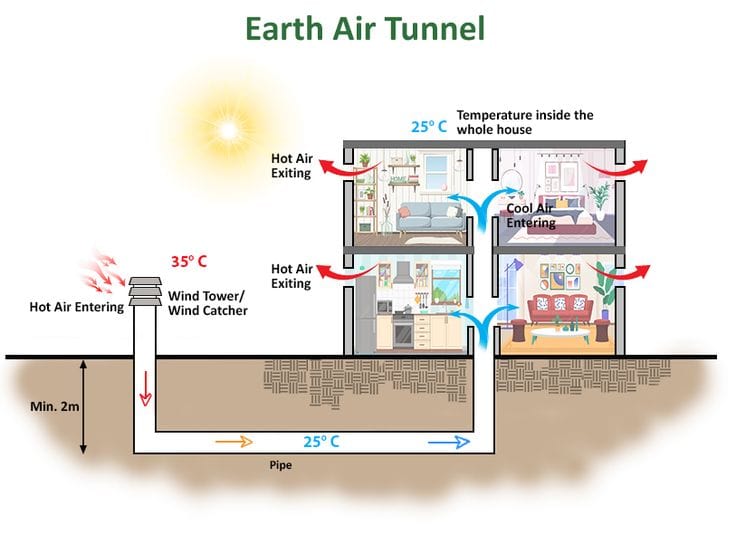

image of earth tube system, here is intresting article from same topic:

Practical Example: Installing an Earth Tube System

Installing an Earth Tube Ventilation System in your home or off-grid cabin involves careful planning, but the rewards in energy savings and environmental benefits are worth the effort. Here’s a step-by-step guide to understanding the process and its potential impact:

Installation Process:

Designing the System:
The first step is to calculate the required length and depth of the pipes. This depends on the size of the building, expected air exchange needs, and the local climate. Typically, pipes are buried at depths where the ground temperature remains stable year-round—usually 1.5–3 meters (5–10 feet). For accurate calculations, a thermal analysis of the soil and an assessment of seasonal temperature variations are essential. For more detailed guidance on designing Earth Tube Systems, including material selection and installation techniques, visit Home in the Earth. Tip: Avoid placing pipes near tree roots or septic systems.
Selecting the Pipe Material:
High-quality, thermally conductive materials such as high-density polyethylene (HDPE) are used for the pipes. These materials ensure durability, resist corrosion, and provide effective heat exchange. The diameter and arrangement of the pipes (e.g., looped or linear) are tailored to the building’s ventilation requirements.
Determining the Airflow Requirements:
The system must be designed to provide sufficient airflow for the building. Airflow rates depend on the size of the property and the number of occupants. For example, a typical family home might require pipes with a combined length of 30–50 meters (98–164 feet) to achieve efficient ventilation.
Integration with Ventilation System:
The Earth Tube System is connected to the building’s ventilation system to ensure seamless air circulation. Proper integration involves installing fans or passive airflow mechanisms to move the conditioned air from the pipes into the home effectively. A monitoring system can be added to optimize performance and ensure the system operates efficiently.

Energy Savings

Earth Tube Systems can reduce energy consumption for heating and cooling by 30–50%. Actual energy savings depend on regional energy prices and consumption habits. Below are examples of potential savings based on different electricity prices and annual consumption levels:

Consumption Type	Annual Consumption (kWh)	$0.10/kWh Savings ($)	$0.20/kWh Savings ($)	$0.30/kWh Savings ($)
Small Apartment	5000	$150	$300	$450
Family Home	10000	$300	$600	$900
Large Household	15000	$450	$900	$1,350
Farmhouse	20000	$600	$1,200	$1,800
Small Business	40000	$1,200	$2,400	$3,600

These savings can vary significantly based on local energy prices, the efficiency of the installed system, and individual consumption habits.

Bonus Insight: Who Should Consider Earth Tubes?

Earth tube systems are ideal for:

Off-grid homes
Eco-conscious homeowners
Rural or agricultural buildings
Passive house and green building projects

If you’re planning a sustainable renovation or building from scratch, this low-energy solution could future-proof your home.

Conclusion

Earth Tube Systems exemplify the ingenuity of harnessing natural geothermal energy for sustainable living. By utilizing the Earth’s stable underground temperatures, these systems provide an energy-efficient, low-maintenance, and environmentally friendly alternative to conventional heating and cooling methods.

Whether you’re constructing a new home or upgrading to a more eco-friendly climate control solution, Earth Tube technology offers numerous benefits, including:

Reduced energy consumption, leading to lower electricity and heating costs.
Minimal maintenance requirements, as the system has no moving parts.
Improved indoor air quality, thanks to natural ventilation and passive cooling effects.
Lower environmental impact, as it reduces reliance on fossil fuels and decreases greenhouse gas emissions.

As interest in sustainable architecture and off-grid living grows, Earth Tube Systems are becoming an increasingly viable solution for residential, commercial, and agricultural applications. With ongoing advancements in materials and system design, the future of this passive climate control technology looks promising.
